AiP74HC191

Asynchronous setting 4-bit synchronous binary up/down counter

AiP74HC191 is a 4-bit binary up/down counter with asynchronous setting and synchronous counting. They include four master/slave flip-flops and internal gate control logic to realize asynchronous setting and synchronous up/down counting functions. Asynchronous parallel data input allows the counter to be preset to any desired value.

1.1 main feature

· Synchronous up/down counting

· Asynchronous setting

· No external logic is required for extended applications

· Package form：DIP16/SOP16/TSSOP16

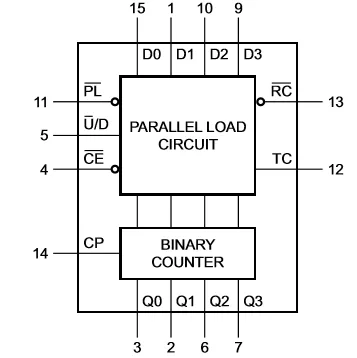

1.2 Functional block diagram

1.3 Pinout

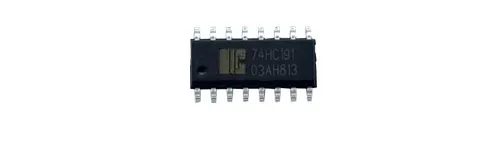

1.4 Physical map

AiP74HC192

Asynchronous reset/asynchronous reset BCD up/down counter

AiP74HC192 is an asynchronous reset, asynchronous reset, synchronous BCD up/down counter. With separate up/down clock CPU and CPD, when the rising edge of any clock arrives, the counter counts. Asynchronous parallel data input allows the counter to be preset to any desired value.

2.1main feature

· Synchronous up/down counting

· Asynchronous setting

· Asynchronous reset

· No external logic is required for extended applications

· Package form：DIP16/SOP16/TSSOP16

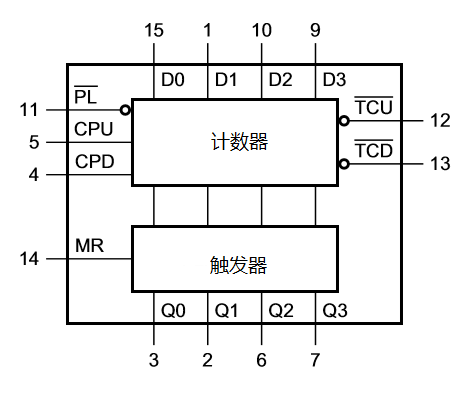

2.2 Functional block diagram

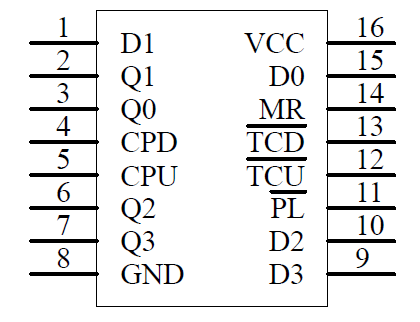

2.3 Pinout

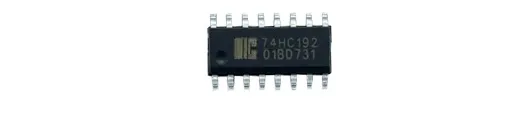

2.4 Physical map

AiP74HC193

Asynchronous reset/asynchronous reset 4-bit binary up/down counter

AiP74HC193 is a 4-bit asynchronous set, asynchronous reset, synchronous binary up/down counter. With separate up/down clock CPU and CPD, when the rising edge of any clock arrives, the counter counts. Asynchronous parallel data input allows the counter to be preset to any desired value.

3.1 main feature

· Synchronous up/down counting

· Asynchronous setting

· Asynchronous reset

· No external logic is required for extended applications

· Package form：DIP16/SOP16/TSSOP16

3.2 Functional block diagram

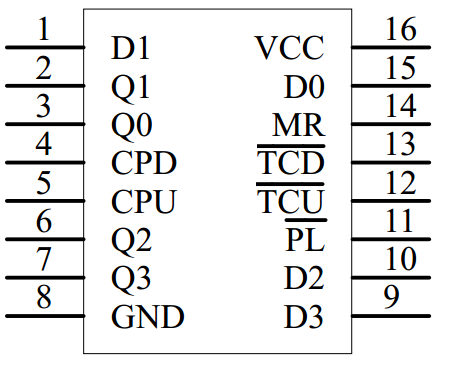

3.3 Pinout

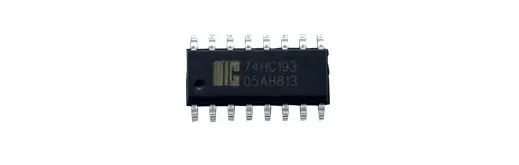

3.4 Physical map
